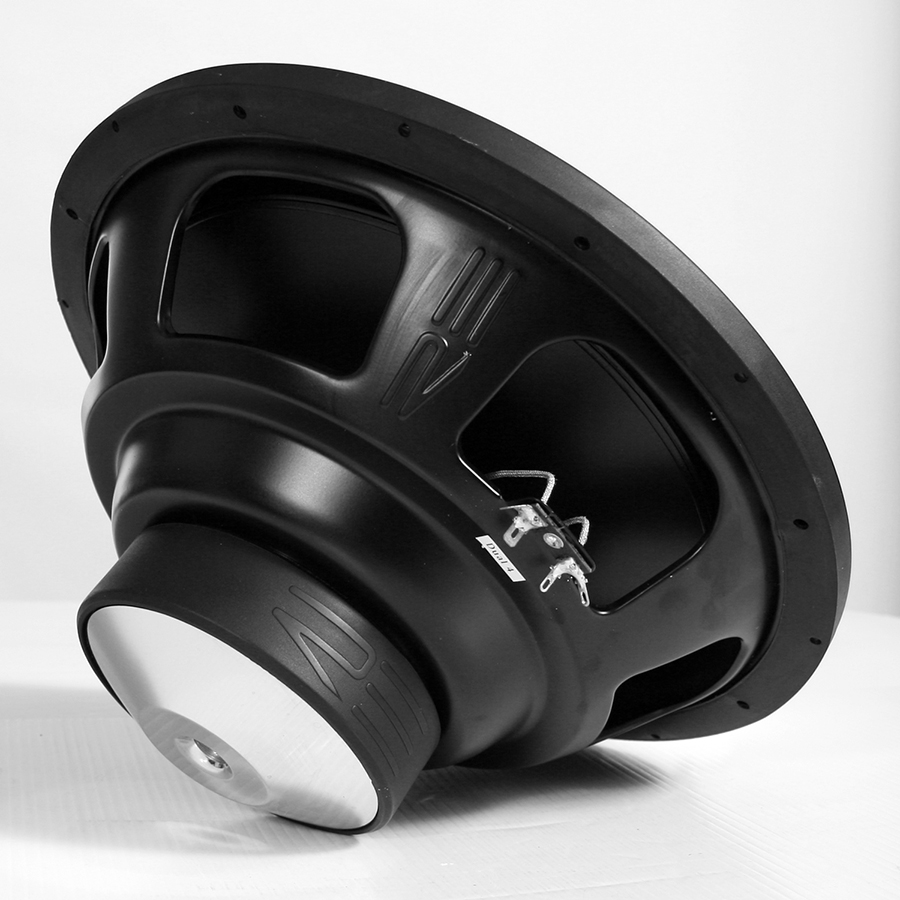

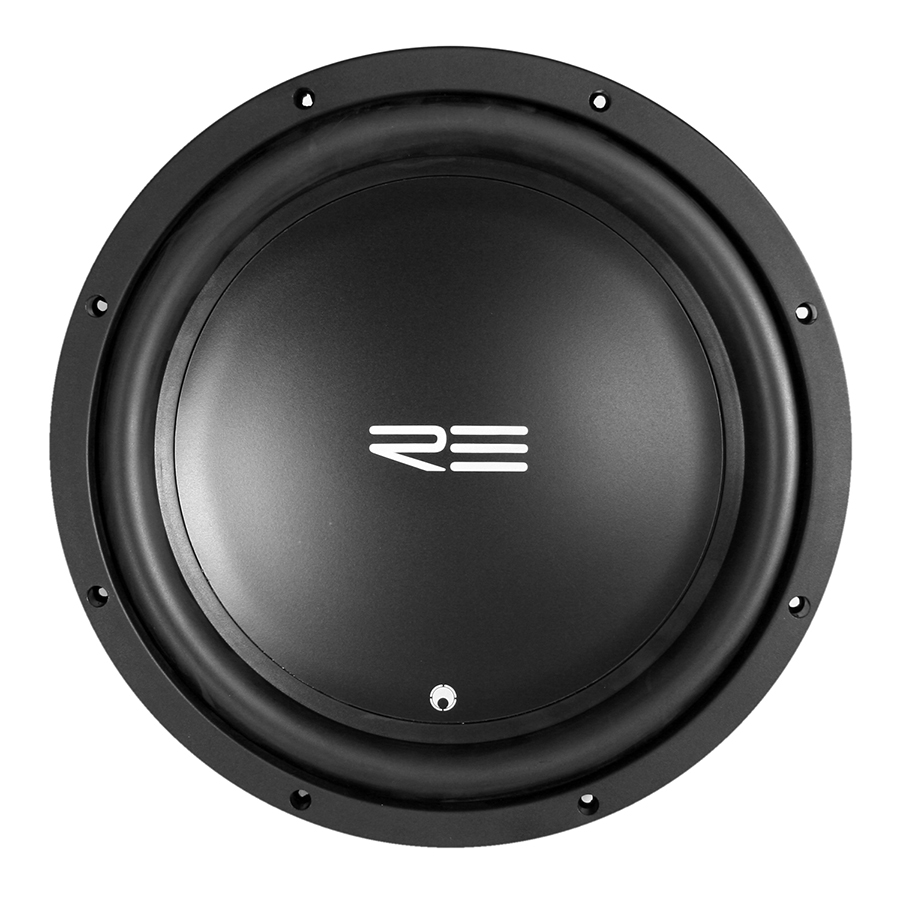

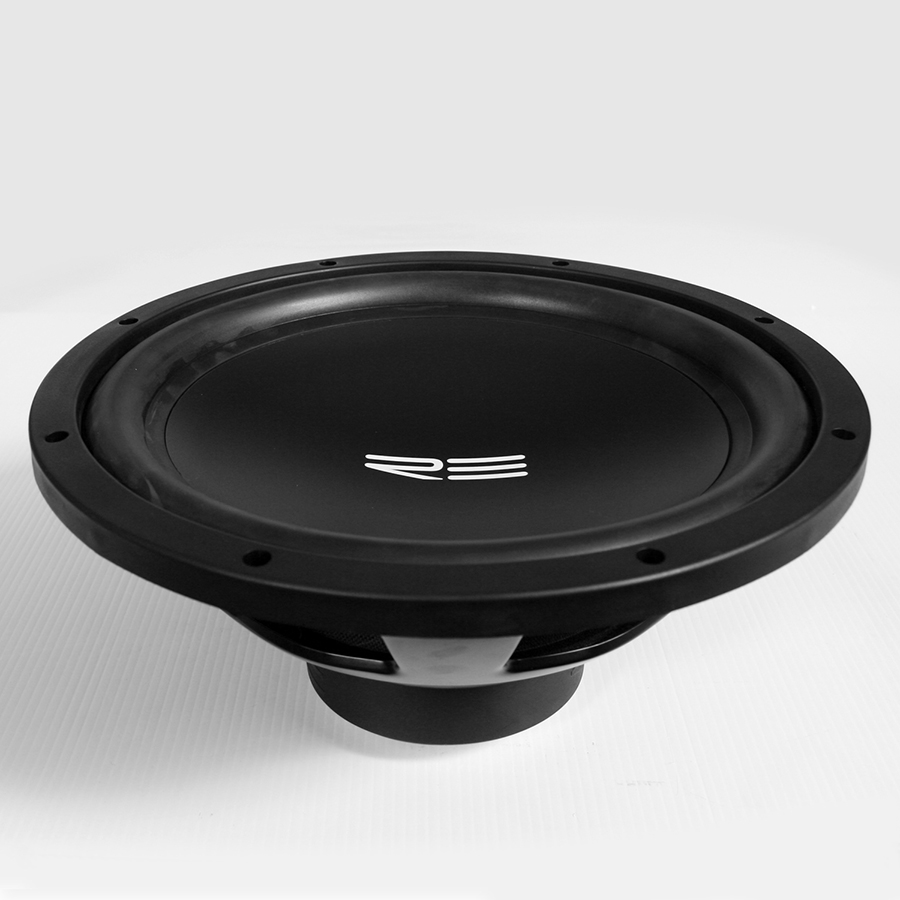

| The REX series offers the same incredible output and distortion free sound you have come to know and love from our REX series. |
|
| |
Sizes: 8" (Single 4 ohm)
|
- Mica Filled Poly Cone
- Santoprene Rubber Surround
- Pressed Steel Basket
- High Temp 8-layer Copper Voice Coil
- FEA Optimized Motor Structure
- Single Magnet
- Linear Conex Spiders
- Rubber Gasket
- Nominal Impedance: Single 4 Ohm
- Power Handling: 200W (RMS)
|
Product Dimension |
| Model |
REX 8 |
| Mounting Depth[in/mm] |
4.5 / 114 |
| Overall Diameter[in/mm] |
8.7 / 221 |
| Displacement[ft3/liters] |
0.07 /1.98 |
| Weight[lbs/kg] |
6.2 /2.81 |
|
|
|
|
| |
Sizes: 10" (Single 4 ohm)
|
- Mica Filled Poly Cone
- Santoprene Rubber Surround
- Pressed Steel Basket
- High Temp 8-layer Copper Voice Coil
- FEA Optimized Motor Structure
- Single Magnet
- Linear Conex Spiders
- Rubber Gasket
- Nominal Impedance: Single 4 Ohm
- Power Handling: 200W (RMS)
|
Product Dimension |
| Model |
REX 10 |
| Mounting Depth[in/mm] |
5 / 127 |
| Overall Diameter[in/mm] |
10.9 / 277 |
| Displacement[ft3/liters] |
0.09 / 2.55 |
| Weight[lbs/kg] |
6.8 / 3.08 |
|
|
|
|
| |
Sizes: 12" (Single 4 ohm)
|
- Mica Filled Poly Cone
- Santoprene Rubber Surround
- Pressed Steel Basket
- High Temp 8-layer Copper Voice Coil
- FEA Optimized Motor Structure
- Single Magnet
- Linear Conex Spiders
- Rubber Gasket
- Nominal Impedance: Single 4 Ohm
- Power Handling: 200W (RMS)
|
Product Dimension |
| Model |
REX 12 |
| Mounting Depth[in/mm] |
5.5 / 140 |
| Overall Diameter[in/mm] |
11 / 279 |
| Displacement[ft3/liters] |
0.1 / 2.83 |
| Weight[lbs/kg] |
7.5 / 3.4 |
|
|
|
Enclosure Recommendations - T/S Parameters
|
| |
| REX 8 SEALED(1) |
 |
REX 8 SEALED(2) |
|
REX 8 VENTED(1) |
|
REX 8 VENTED(2) |
|
| REX 10 SEALED(1) |
|
REX 10 SEALED(2) |
|
REX 10 VENTED(1) |
|
REX 10 VENTED(2) |
|
| REX 12 SEALED(1) |
|
REX 12 SEALED(2) |
|
REX 12 VENTED(1) |
|
REX 12 VENTED(2) |
|
|
|
| |
